Why Do Rotationally Molded Parts Fail in the Field? It’s Usually the Design, Not the Material
Most field failures in rotationally molded parts get blamed on the resin. In reality, the majority trace back to a design file built with injection-molding habits: sharp internal corners, tall unsupported ribs, or wall thicknesses that assume pressure-fed material flow. Rotational molding has no injection pressure pushing material into a cavity, so design rules that work perfectly for one process actively work against the other.
Why Don’t Injection Molding Design Rules Work for Rotational Molding?
Injection molding pushes molten plastic into a closed cavity under pressure, often thousands of PSI. That pressure is what lets a designer get away with thin walls, tight internal radii, and ribs that stand tall relative to their base width. Rotational molding works on a completely different physical principle. Powdered resin sits inside a hollow mold, the mold heats and rotates on two axes, and gravity and heat do the work that pressure does in injection molding. There is no force driving material into a sharp corner or a narrow rib cavity. If the geometry doesn’t give the resin an easy path to follow, the part will show it, usually as a thin spot, a bubble, or a corner that never fully sinters.
Draft Angles and Wall Thickness
Injection molders can often run with draft angles as low as a fraction of a degree because ejection is assisted by pressure and cooling shrinkage against a rigid core. Rotational molding typically needs a minimum draft angle in the range of 1 to 2 degrees per side, and more on deep or textured surfaces, because the part has to release from the mold without mechanical assistance. Wall thickness compounds the problem. Injection-molded parts are engineered for thin, uniform walls because that’s what the pressure-fed process rewards. In rotomolding, wall thickness is a function of powder loading, cycle time, and heat distribution, not pressure. A designer who specs a wall thickness based on injection-molding norms will frequently end up with a part that’s underbuilt in the exact spots that see the most mechanical stress in service, like corners and mounting bosses.
Ribs, Bosses, and Corners
Ribs in rotational molding have to be designed as hollow, blind features, not the thin solid fins common in injection molding, because there’s no pressure to force powder into a tall, narrow cavity. Industry design guidance from the Association of Rotational Molders generally recommends rib width-to-depth ratios that keep ribs low and wide rather than tall and thin, and internal corner radii of at least a quarter inch to avoid the bridging and thin-wall conditions that show up when powder can’t settle evenly into a sharp angle. Boss placement matters just as much. A boss designed like an injection-molded boss, thin-walled with a sharp base transition, is one of the most common points of early cracking in a rotomolded part because that transition is exactly where wall thickness is hardest to control.
What Does Design for Rotational Molding Look Like on the Shop Floor?
The difference between a design that respects the process and one that fights it usually shows up long before the first part comes off the mold. It shows up in mold design and cycle programming. Modern rotational molding increasingly relies on embedded temperature sensors and time-temperature profiling inside the mold, which lets an operations team see exactly how heat is distributing across a geometry before committing to a full production run. When a design has thin ribs, sharp corners, or uneven wall sections built in from the CAD file, that data will show it immediately as inconsistent heating and cooling curves across the part, long before it becomes a warranty claim in the field.
This is also where digital twins and predictive modeling earn their keep. Simulating how a mold will behave under different heating and cooling parameters before cutting steel catches geometry problems while they’re still a CAD change, not a tooling change. A rib that looks fine on screen but creates a heat trap in the mold is far cheaper to fix as a design revision than as a reworked tool. Manufacturers who build this kind of process control into the front end of a project, rather than treating it as a troubleshooting step after parts start failing, consistently see fewer wasted cycles and fewer post-launch design changes.
The practical upshot for an OEM engineer or procurement lead: the highest-leverage moment in a rotomolding project isn’t tooling approval. It’s the design review before the mold is ever cut, when a rib pattern, a corner radius, or a boss detail can still be adjusted on a drawing instead of on a finished tool.
What Objections Do Skeptical Engineers Raise About Designing for the Process Up Front?
“We don’t have time to redesign for a different process. We need this part in production.” A design-for-rotomolding review typically adds days to a project timeline, not weeks, and it happens in parallel with other early-stage work like material selection. Compare that to the alternative: a tooling change after a failed first-article inspection, which routinely adds weeks and a second round of tooling cost. The upfront review is the faster path, not the slower one, once tooling rework is part of the comparison.
“Our resin supplier already accounts for this. Why does the design matter separately from material choice?” Resin selection and part geometry solve different problems. A higher-performance polyethylene grade can improve impact resistance or UV stability, but it can’t compensate for a rib that traps heat unevenly or a corner radius too tight for powder to settle into fully. Material and geometry both have to be right. Upgrading resin to cover for a geometry problem usually just delays when the failure shows up, it doesn’t prevent it.
“This sounds like it’s just about avoiding tank and bin shapes. Our parts are more complex than that.” This is actually the reverse of the usual assumption. Simple tank and bin geometries are forgiving precisely because they avoid tall ribs, sharp internal corners, and tight boss transitions. The parts most likely to fail from a design mismatch are exactly the more complex, feature-rich parts, enclosures, housings, components with mounting points and structural ribs, because that’s where injection-molding habits are most likely to get carried over without adjustment.
Getting the Design Right Before the Mold Is Cut

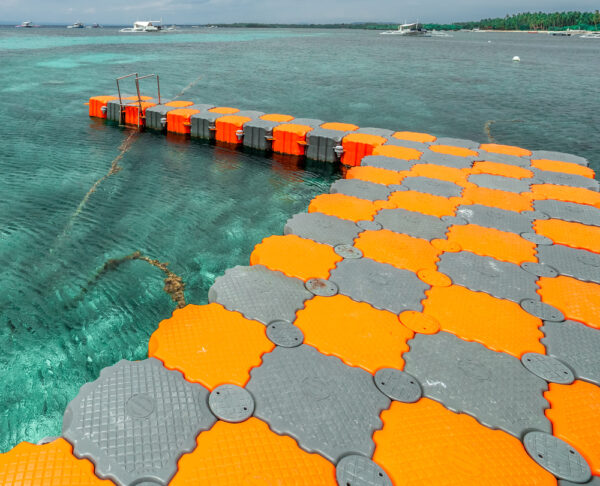

The pattern holds across industries: outdoor equipment, industrial components, agricultural products, and public safety gear all see the same failure modes when rotomolding designs inherit assumptions from a different process. Corners crack. Ribs create weak points instead of strength. Wall thickness ends up inconsistent in exactly the areas that carry the most load. None of these are material failures. They’re geometry decisions made without accounting for how rotational molding actually forms a part.
The teams that get the best results treat the design phase as part of the manufacturing process, not a step that happens before manufacturing begins. That means involving a rotational molding partner while the part is still a drawing, not after the first production run reveals a problem.
